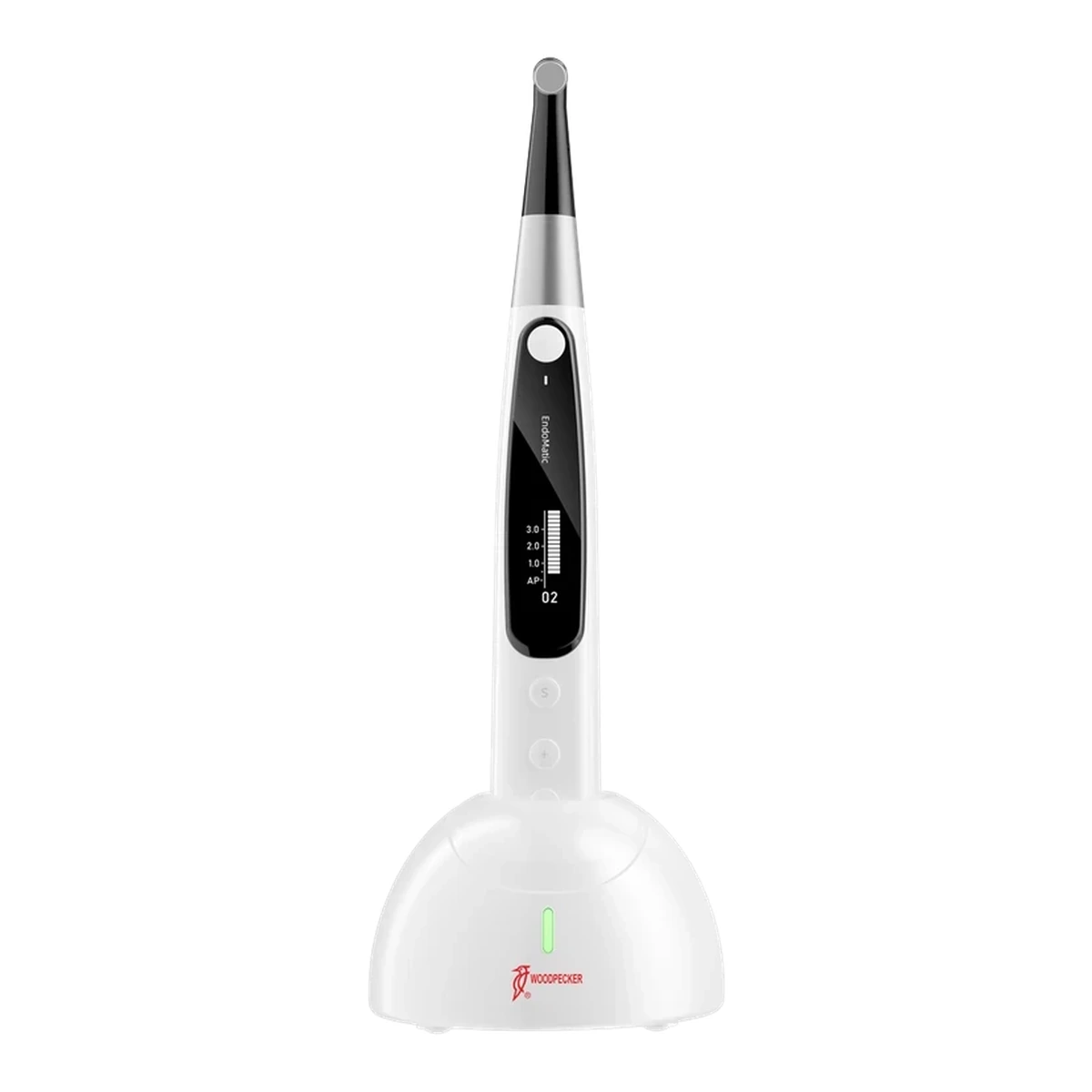

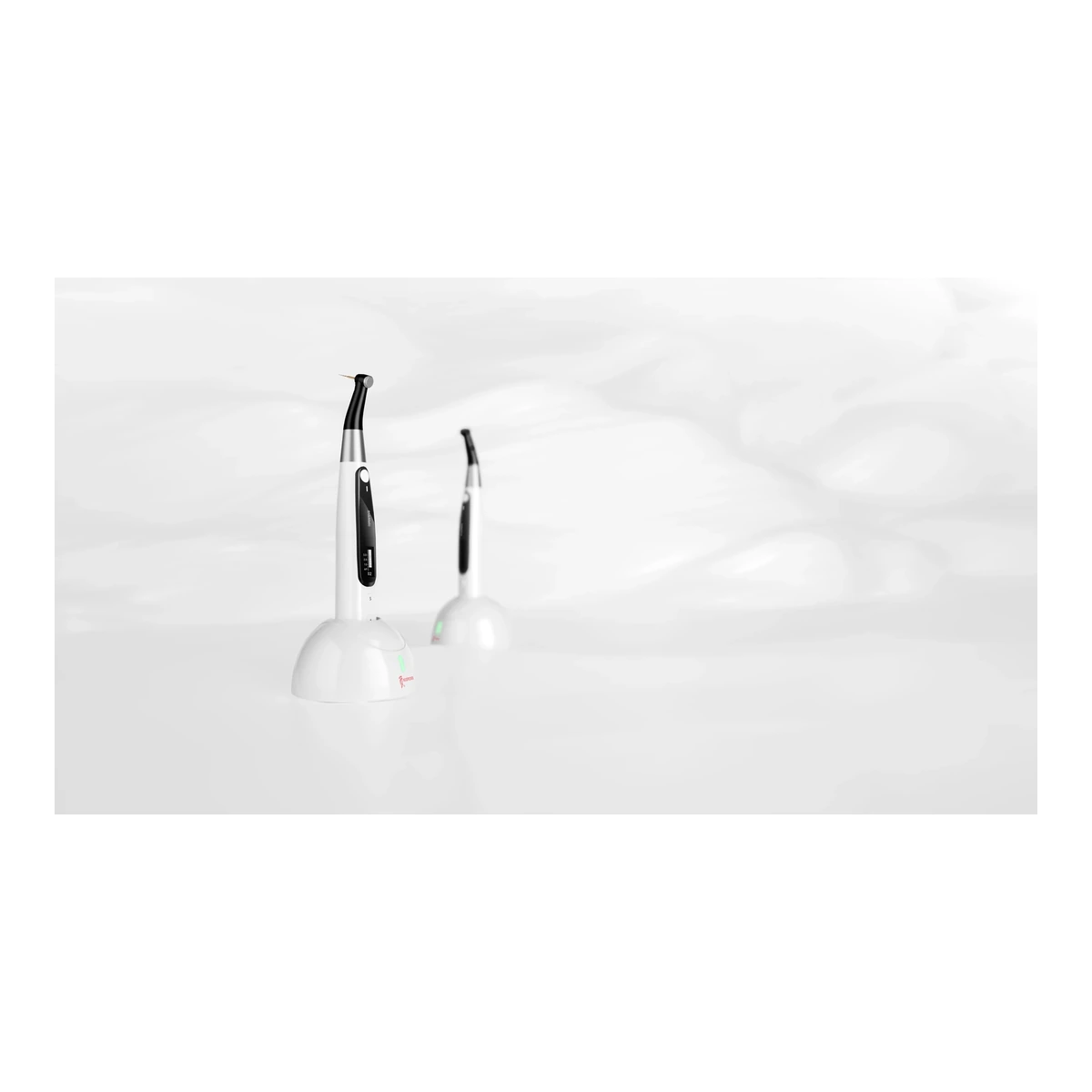

Woodpecker EndoMatic 2-in-1 Endomotor
Woodpecker EndoMatic combines canal preparation with integrated length measurement in a cordless handpiece. Its insulated contra-angle design and compact working end are useful details when comparing an endodontic setup for daily practice. Review the head arrangement, motor settings and measuring accessories together to choose a system that fits your established preparation workflow.
Woodpecker EndoMatic: an insulated contra-angle designed for combined use
A defining feature of EndoMatic is the surface-insulated plastic contra-angle described in its manual. The built-in measuring electrode is part of the combined preparation and length-measurement arrangement. The catalogue explains that this design avoids the need for a separate insulating silicone sleeve on that contra-angle. Use the specified head and connection arrangement, since the measuring function depends on the intended components working together.

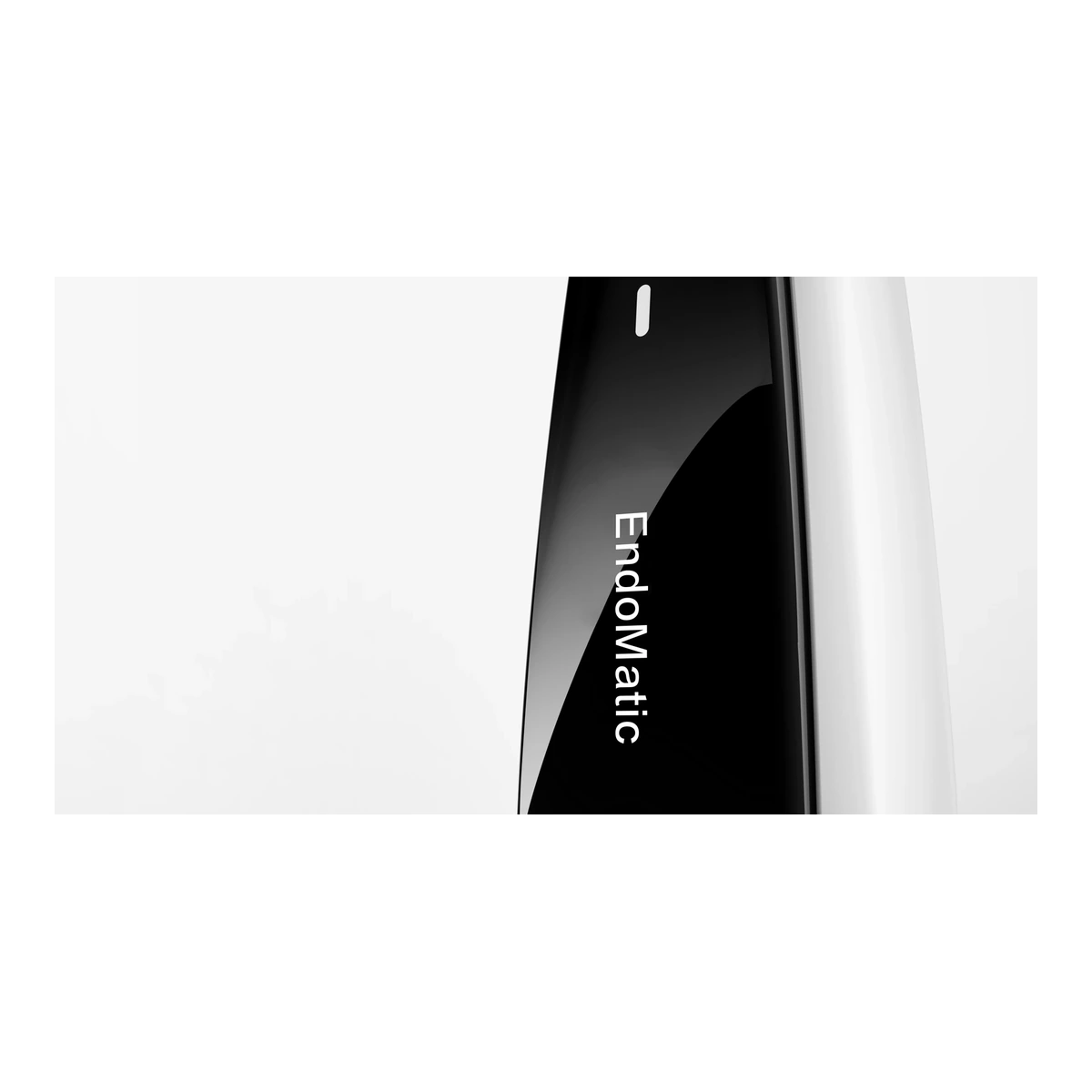

Keep the display visible as the working position changes
The manufacturer describes an OLED display and a contra-angle that rotates through 300 degrees. This allows the clinician to adjust head orientation while maintaining a useful view of the display. During combined use, the screen provides information about file-tip position. Position feedback and torque information can support a consistent workflow, but the clinician still chooses the file sequence, verifies the preparation and responds to the operating conditions.
Drive settings for a defined preparation sequence
The manufacturer manual specifies 100–1000 rpm and a torque range of 0.4–5.0 Ncm. It also describes rotation, measurement and adaptive torque functions, with reciprocation instructions applicable to devices that provide that mode. Compare the supplied revision with the files used in the practice before programming it. Correct movement direction, attachment compatibility and file-specific settings are more relevant than assuming that all endodontic motors operate identically.

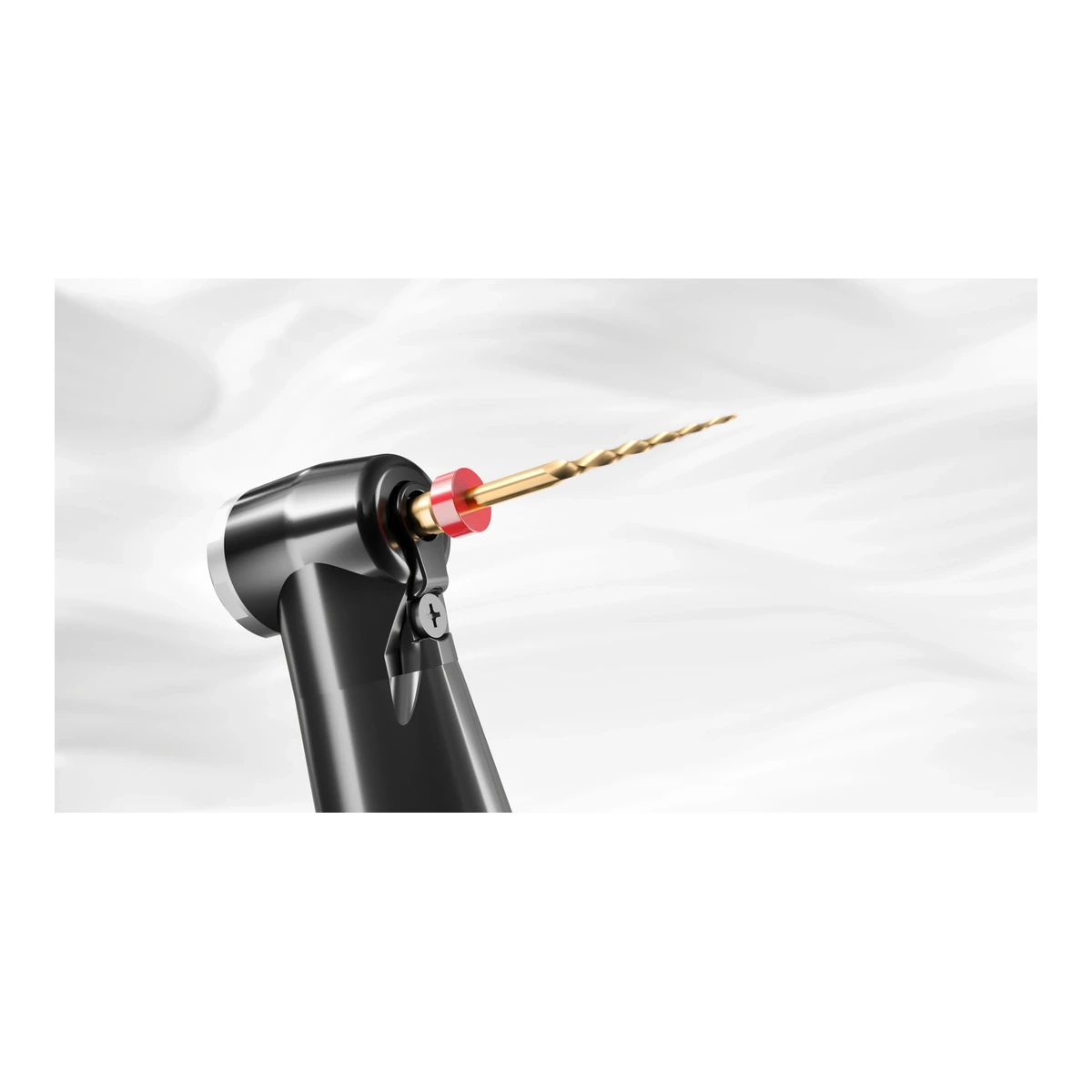

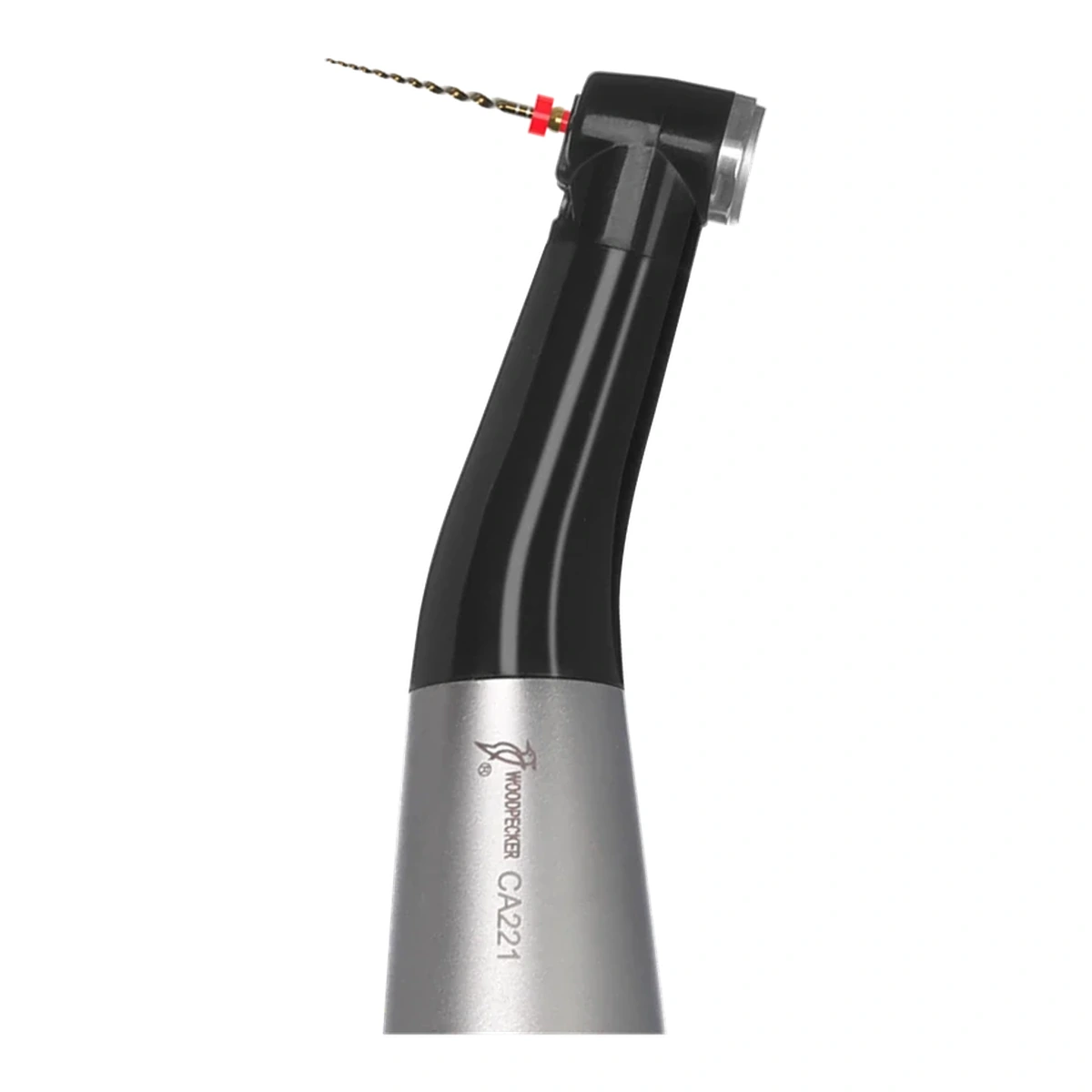

Understand the head and measuring-electrode arrangement
The EndoMatic manual specifies a 1.8:1 contra-angle ratio for the documented configuration. This is a reason to order the correct original head rather than choosing a replacement from another motor by appearance. The head’s built-in measuring electrode and insulation are also part of the design. Keep the model and contra-angle information available when ordering replacement parts, and check the supplied revision whenever older and newer equipment are used within the same practice.
Specifications for Woodpecker EndoMatic
| Functions | Canal preparation and electronic length measurement |
|---|---|
| Speed | 100–1000 rpm |
| Torque | 0.4–5.0 Ncm |
| Contra-angle | Insulated plastic; integrated measuring electrode |
| Contra-angle rotation | 300 degrees |
| Documented contra-angle ratio | 1.8:1 |
5 easy buying checks for Woodpecker EndoMatic
Match continuous rotation or reciprocating movement to the exact file instructions and the operating modes available on the supplied motor.
Check the recommended working settings for the file sequence. The full adjustment range of a motor is not a setting recommendation for every canal.
Identify the measuring wire, lip hook and file connection used by the selected system. Establish how length feedback will be checked during the procedure.
Select the original head and reduction ratio for this motor. Check how the head orientation fits the operator’s view and the tooth being treated.

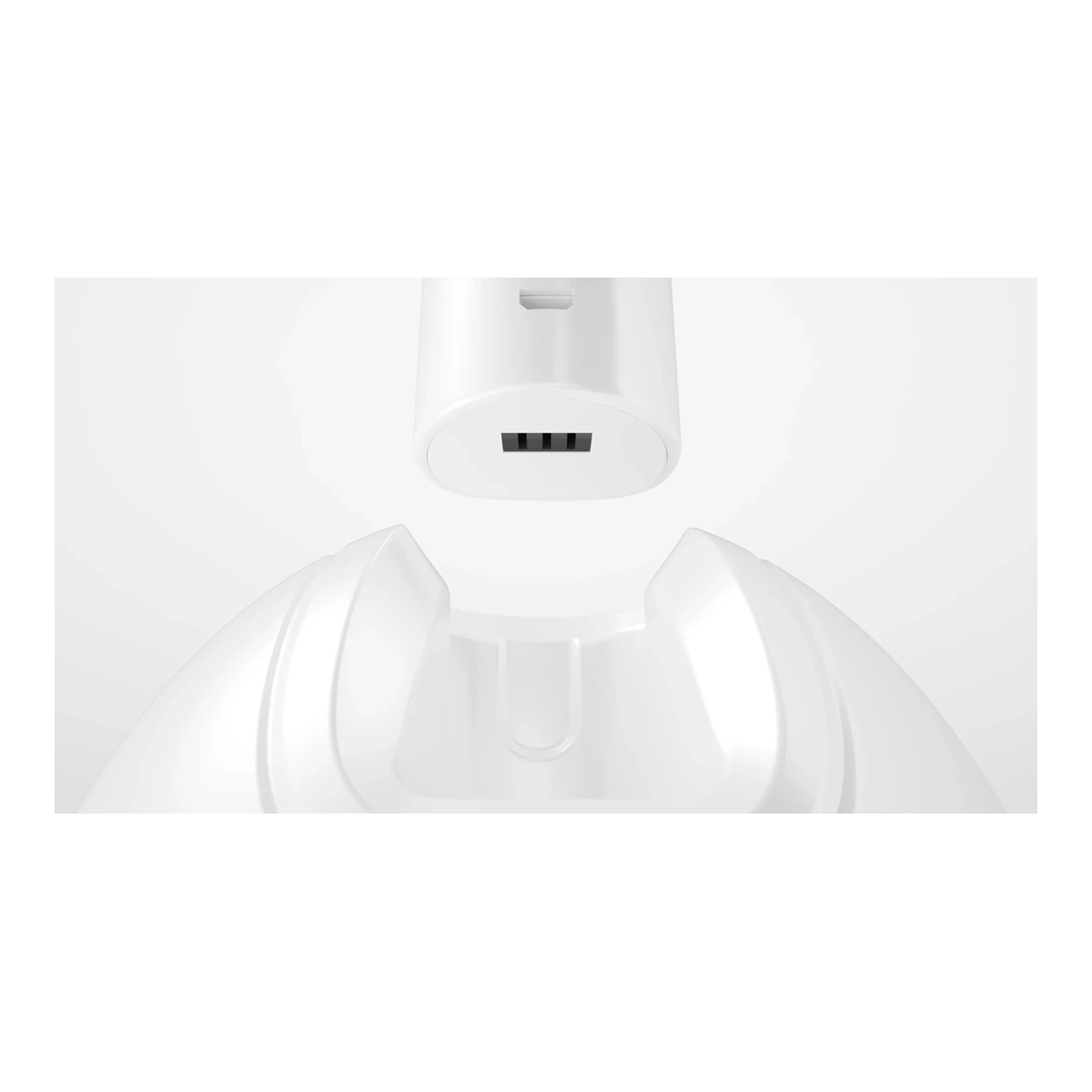

Plan the charging location, approved adapter and component-specific reprocessing routine before the system enters the daily clinical workflow.
Care for Woodpecker EndoMatic
Woodpecker EndoMatic has different care requirements for its electronic handpiece and removable components. The motor handpiece must not be autoclaved. Clean, disinfect, lubricate and sterilise the specified removable components according to the applicable instructions, then inspect them before reuse. Check the measuring connections and file retention during preparation of the device. Use the original adapter and compatible replacement parts. Read the measurement display according to the model instructions; its position markings are indicators within the measuring arrangement rather than a physical length ruler.
Woodpecker EndoMatic: questions before you order
What makes Woodpecker EndoMatic a two-in-one device?
It combines motor-driven root canal preparation with electronic canal-length measurement. The manual also describes use as a measuring device independently of preparation.
Does EndoMatic use the same head as every other motor?
Its insulated plastic contra-angle and built-in electrode are specific features of its design. Order compatible parts for the exact model, rather than assuming that a head from another motor is interchangeable.
How far can the contra-angle rotate?
The manufacturer manual describes 300-degree rotation. This adjustment helps position the head while keeping the OLED display visible from the operator’s working position.
What should be confirmed when buying Woodpecker EndoMatic?
Check the supplied revision, contra-angle, measuring accessories, charging components and replacement-part support. Compare the available operating modes with the movement and settings required by the file systems used in the practice.
