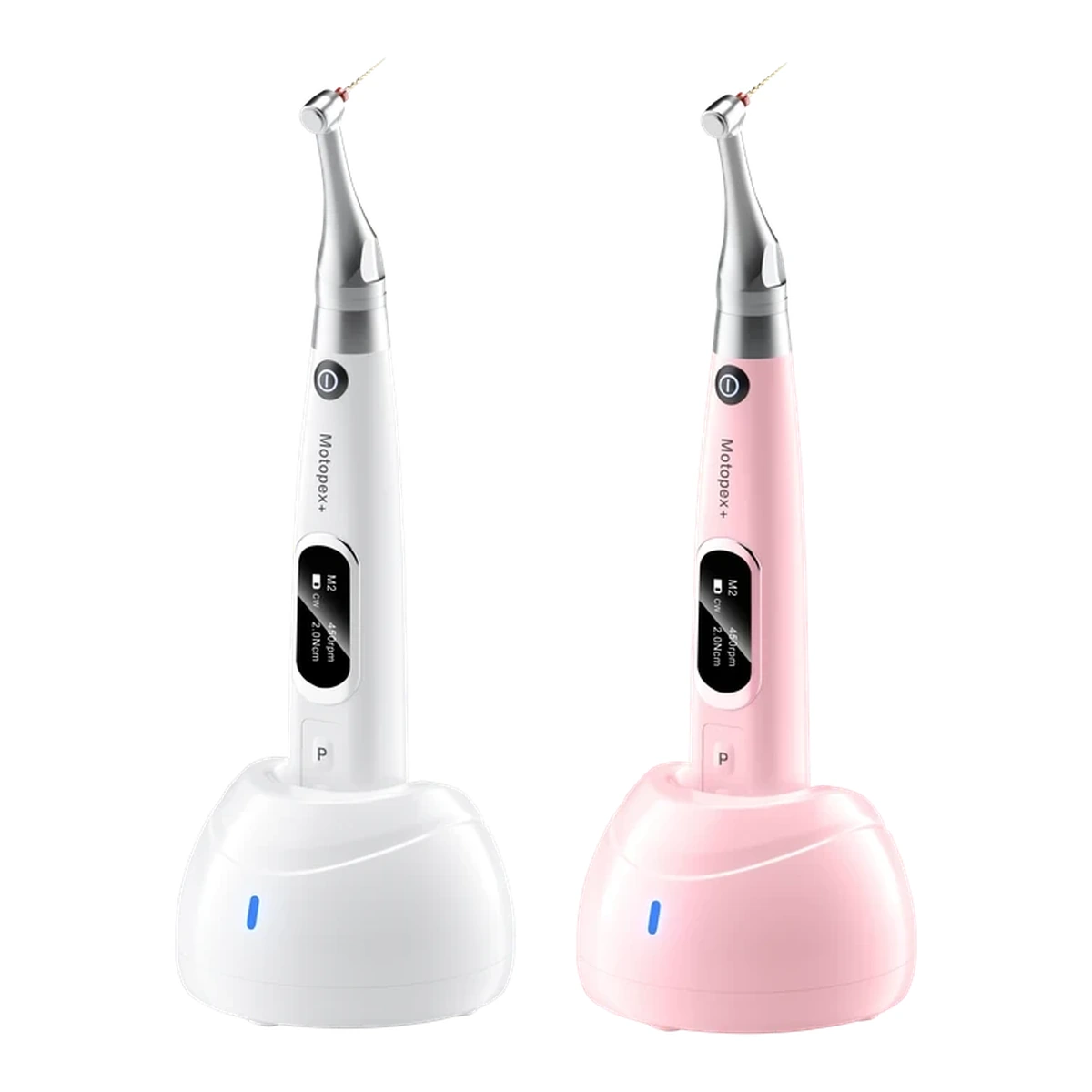

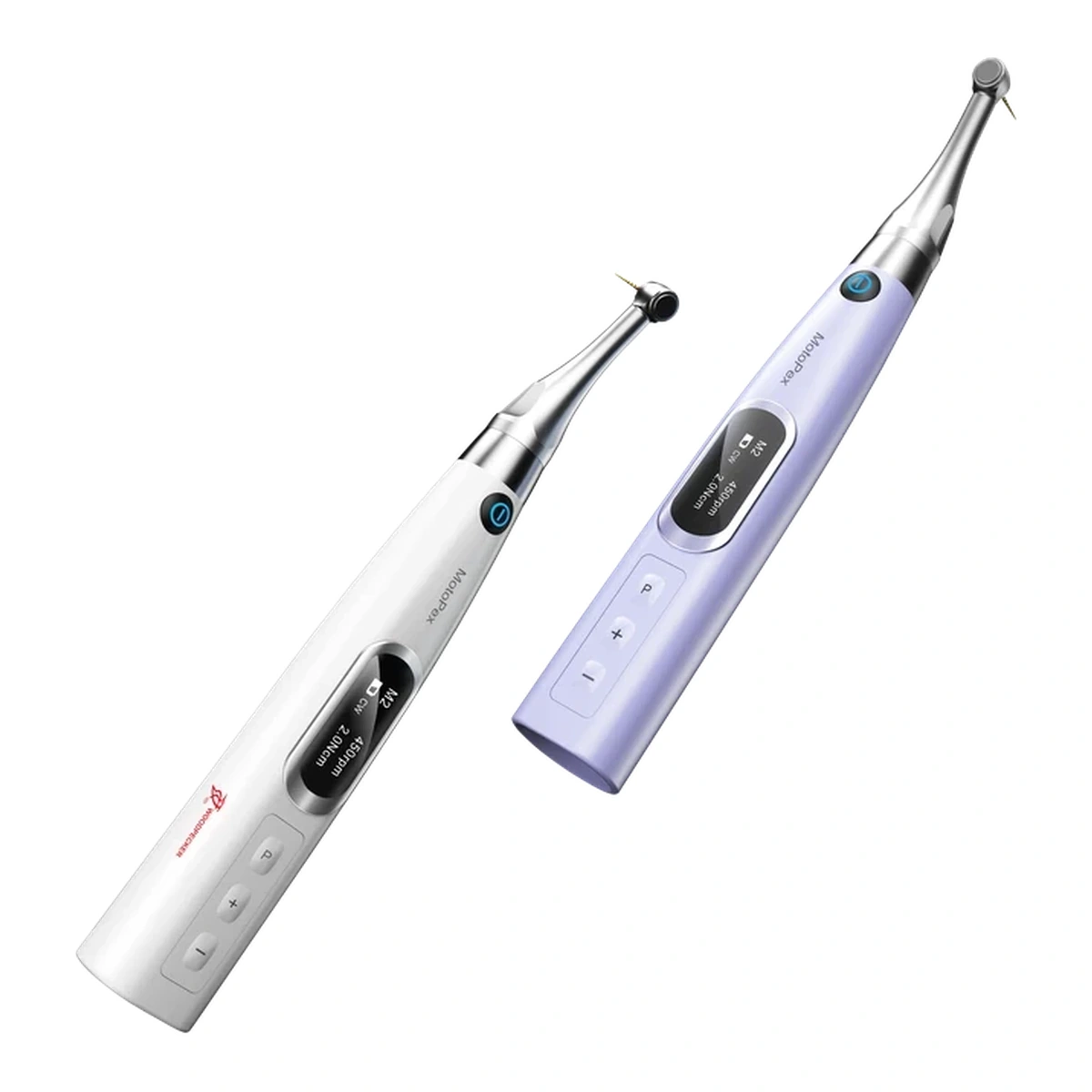

Woodpecker MotoPex Endomotor with Apex Locator
Woodpecker MotoPex combines a cordless brushless motor with integrated apex-location functions. For a clinic that wants preparation and length feedback in one setup, it brings both functions to the working handpiece. A small contra-angle head and programmable drive settings support an organised file sequence, with the final settings selected for the file manufacturer’s instructions.
Woodpecker MotoPex: preparation and measurement in the same workflow
The manufacturer describes three uses for MotoPex: driving endodontic files, measuring canal length and preparing while monitoring file-tip position. Combined operation uses the appropriate measuring components to provide feedback during instrumentation. The catalogue also describes automatic actions associated with the file position. These functions must be configured using the instructions and interpreted in the clinical context, with the operator retaining control over the preparation sequence.
A small contra-angle with adjustable orientation
Woodpecker MotoPex uses a 6:1 contra-angle. The catalogue gives the head dimensions as 8 mm in diameter and 9.7 mm in height and describes a 360-degree rotatable arrangement. A smaller head can help preserve the operating view when accessing posterior teeth, while adjustable orientation allows the handpiece to be positioned for the operator’s working position. The supplied contra-angle remains a model-specific component and should be maintained accordingly.
Compare the settings that matter to your files
The manufacturer manual specifies a speed range of 100–1200 rpm and torque settings from 0.4 to 5.0 Ncm. The catalogue describes adjustable reciprocation for applicable configurations. When evaluating the device, compare the exact file-system instructions with the available mode, direction and parameter ranges. This is more useful than choosing an endodontic motor by maximum speed alone. Match each stored programme to a defined preparation sequence.
Plan the measuring circuit as part of the equipment setup
The measurement arrangement includes more than the motor itself. Measuring wires, a file connection and the appropriate patient-contact component form part of the system described by the manufacturer. Check that the ordered presentation provides the correct components and that spare items can be identified easily. A practice that intends to use combined preparation and measurement should prepare these accessories alongside its files and contra-angle, making the planned workflow clear before the treatment session begins.
Specifications for Woodpecker MotoPex
| Speed | 100–1200 rpm |
|---|---|
| Torque | 0.4–5.0 Ncm |
| Contra-angle ratio | 6:1 |
| Head dimensions | 8 mm diameter; 9.7 mm height |
| Measurement | Integrated root canal length measurement |
5 easy buying checks for Woodpecker MotoPex
Match continuous rotation or reciprocating movement to the exact file instructions and the operating modes available on the supplied motor.
Check the recommended working settings for the file sequence. The full adjustment range of a motor is not a setting recommendation for every canal.
Identify the measuring wire, lip hook and file connection used by the selected system. Establish how length feedback will be checked during the procedure.
Select the original head and reduction ratio for this motor. Check how the head orientation fits the operator’s view and the tooth being treated.
Plan the charging location, approved adapter and component-specific reprocessing routine before the system enters the daily clinical workflow.
Care for Woodpecker MotoPex
The detachable contra-angle and measuring accessories have their own cleaning and reprocessing requirements. The electronic motor handpiece is not autoclavable. Keep the charging arrangement and connections clean and dry, inspect the file-locking mechanism and use the specified power adapter. Follow the manufacturer’s maintenance procedure for the contra-angle so that the drive components receive the care required for repeat use.
Woodpecker MotoPex: questions before you order
Is Woodpecker MotoPex a motor or an apex locator?
It combines both functions. It can be used for preparation, electronic length measurement or preparation with file-tip position monitoring when connected and configured as instructed.
What speed range does Woodpecker MotoPex provide?
The manufacturer manual lists 100–1200 rpm. Select the operating speed using the requirements of the chosen file system and the applicable device instructions.
Why is the contra-angle ratio relevant?
The 6:1 contra-angle is part of the motor’s drive configuration. Use the correct original component and its maintenance procedure; an arbitrary replacement head may not provide the intended drive or measuring arrangement.
Are all instruments shown in illustrations included?
Package contents are determined by the ordered presentation and its packing list. Confirm the included motor, charging components, contra-angle and measurement accessories, together with any separately ordered files or replacement parts.
